Symons cone crusher main Components

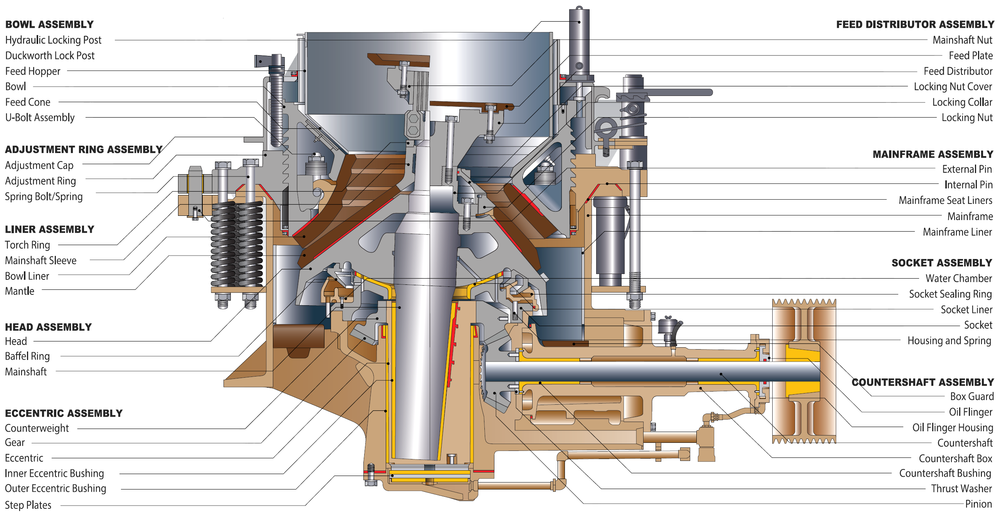

The diagram below shows the main component layout of a Symons cone crusher, the most widely copied crusher design in history. Key assemblies include the main frame, socket assembly, eccentric, main shaft with mantle, bowl with concave, adjustment cap, and countershaft with pinion gear. Symons crushers from 2ft to 7ft share this same fundamental architecture.
